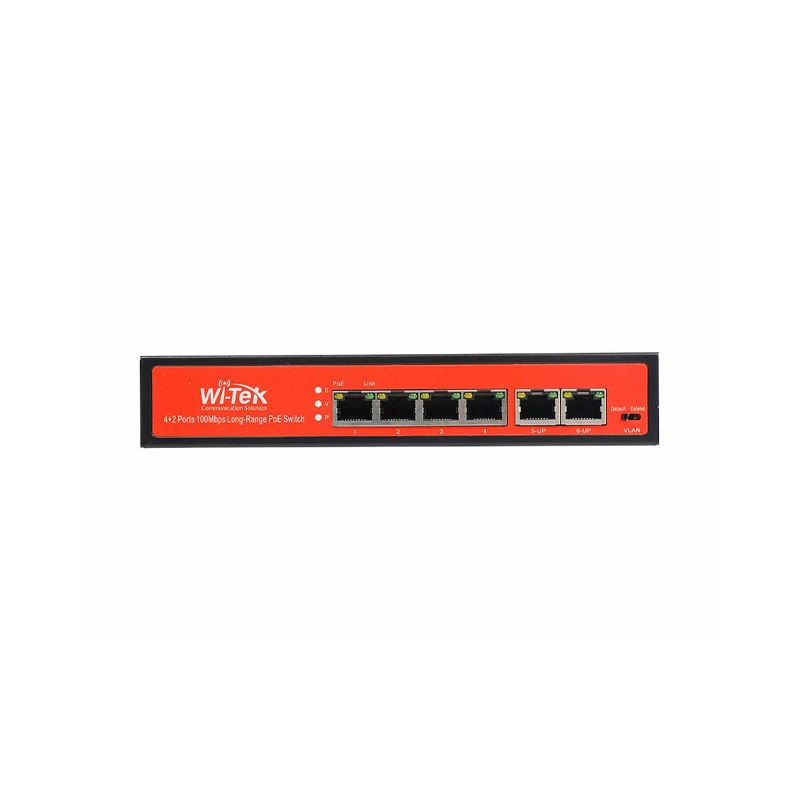

WI-TEK 4FE+2FE uplink 250m LR switch WI-PS205V2

0 Orders 0 Wish listed

Rs.14,500

Qty

Total price:

Rs.14,500

Overview
Reviews

Detail Description

4FE+2FE uplink 250M Long Range PoE Switch with 4PoE Port
Supports smart watchdog function to monitor compliant PD
Port 1 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
Port 2-4 supports PoE 30W fit IEEE 802.3af/at compliant PDs
Internal power adapter supply 65W
Support 250meters Long range PoE Transmit
2K entry MAC address table with auto-learning and auto-aging
Realtek Switch Chipset+TI PoE Chipset guarantee stable performance

Interface	4 100M RJ45 PoE Ports
2 10/100Mbps RJ45 Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Power Supply	AC 100~240V 50/60HZ
Standard	802.3 af/at/bt compliant PoE
PoE Ports	Port 1-4
PoE Power Budget	65W
Hi-PoE 60W	Port 1
LED Indicator	PoE/Link/Power
DIP Switch	Default/VLAN/Extend
250m	Yes
Port VLAN	Yes
PoE Watchdog	Yes
Mac Address Table	2k
Packet Forwarding Rate	0.89Mpps
Jumbo Frame	2kB
Protection Level	Lightning protection 6kV
6kV ESD Contact discharge
Package Dimension	270×220×605 mm
Switch Dimension	190×130×35 mm
Gross Weight	1kg
Net Weight	0.6kg
Package Content	1× Switch
1× Power Cord
1×Rackmount Kit
1× Quick Installation Guide
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	Watchdog Function
Mac Address Auto-Learning
Auto-Aging Store and forward
IEEE 802.3x flflow control for Full-duplex Mode
Backpressure for Half-duplex Mode
OTHERS
Certification	CE, FCC, RoHS
Environment	Operating Temperature: -10℃–55℃ (14℉–131℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty	3 Years

WI-TEK 4FE+2FE uplink 250m LR switch WI-PS205V2

Unmanaged switch WI-PS205H v2 with PoE (Power over Ethernet) function is used in IP telephony, IP video surveillance, Wi-Fi installations. No specialized knowledge is required to install, configure, and maintain the switch, making it easy to use.

Power supply built-in.

The switch is equipped with 6 100Base-TX ports, 4 of which support 802.3af/at (PoE, PoE+).

The switch supports CCTV operation mode and Watchdog function.

The WI-PS205H v2 unmanaged switch of the updated version supports the Watchdog function - automatically detecting hung IP cameras or other equipment and restarting the PoE power on the ports. The switch is equipped with an additional mode switch Default
