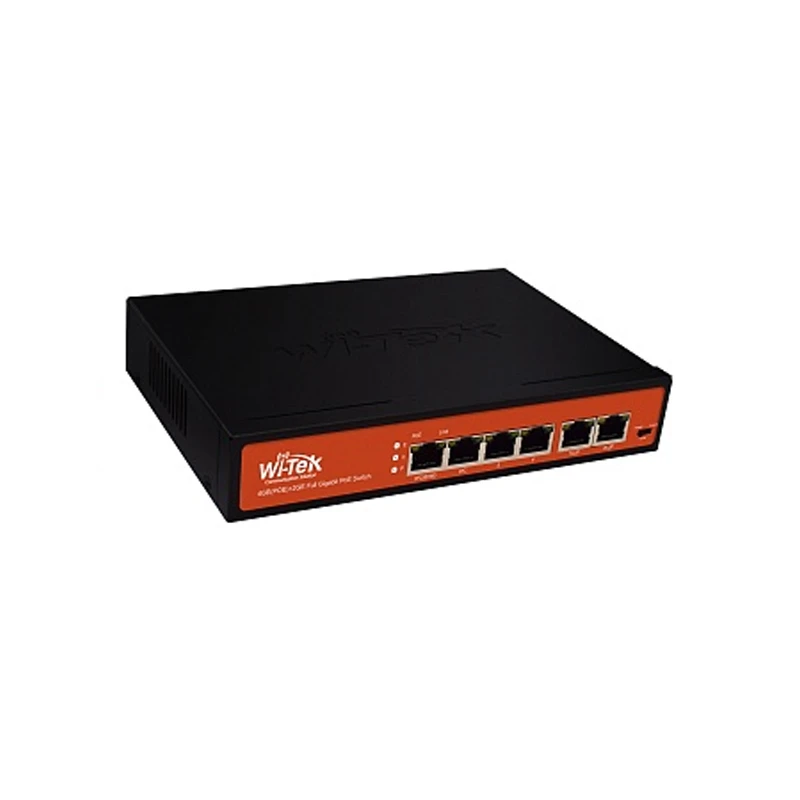

WI-TEK 4GE+2GE Uncontrolled Gigabit Switch With POE Function WI-PS305G

0 Orders 0 Wish listed

Rs.7,000

Qty

Total price:

Rs.7,000

Overview
Reviews

Detail Description

● 4 10/100/1000Mbps RJ45 PoE Ports

● 2 1000Mbps RJ45 Ports

● 802.3af/at PoE+ output with 65W power budget

● Smart DIP Switch: 250m Extend mode, Port VLAN mode

● PoE watchdog detects and reboots unresponsive PoE-powered devices

● Plug and play, zero configuration

Interfaces	6 ports 10/100 / 1000M
Physical environments	10BASE-T: UTP cable of categories 3, 4, 5 ( max. 100m )
100BASE-TX / 1000Base-T: UTP cable of categories 5, 5e, 6 or higher ( max. 100m )
Cooling	Passive
Power consumption	65W max. ( with connected POE devices )
	Input voltage AC 110 ~ 240V 50 / 60Hz
Internal power supply

PoE ports ( RJ45 )	PoE ports from 2 to 4 ( standard 802.3 af / at ) up to 30W on port
PoE port 1 ( standard 802.3af / at / bt ) up to 60W on port
Throughput	12bit / s
Mac Addresses Table	2K
Dimensions	190 * 130 * 35 mm
Temperature and humidity
Operating temperature: -10 ℃ ～ 55 ℃
Storage Temperature: -40 ℃ ～ 70 ℃
Humidity during operation: 10% ～ 90% RH without condensate
Storage Humidity: 5% ～ 90% RH without condensate
Switching method	Store-and-forward
Advanced Functions
VLAN - Port Isolation

Extend - Support for the transfer of PoE to 250m

Watchdog
Mac Address Auto-Learning And Auto-Aging Store and forward
IEEE 802.3x flow control for Full-duplex Mode
Backpressure for Half-duplex Mode
Warranty	3 Years

WI-TEK 4GE+2GE Uncontrolled Gigabit Switch With POE Function WI-PS305G

The switch is equipped with 6 ports 1000Base-T, of which 3 support 802.3af / at ( PoE, PoE + ) and 1 port supports 802.3bt ( HiPoE ).

The switch supports the function Watchdog - automatic detection of hanging equipment and reloading of PoE power at the port.

WIF-PS305G is equipped with an additional Default / operating mode switch / VLAN / Extend.

Default mode — normal operation.
Mode Vlan — port insulation mode; allows you to isolate the traffic of connected devices at a physical level, which limits their communication at the 2nd and 3rd levels, and guarantees the safety of content transfer.
Mode Extend — PoE transmission mode up to 250 meters; allows you to overcome the barrier of 100 meters, standard for Ethernet networks, and connect remote devices without using PoE-repiters.

Reliable internal silent power supply, Developed by Wi-Tek guarantees uninterrupted operation for a long service life, and its internal execution simplifies the installation and operation of equipment, as well as saves space during installation. An increased nominal budget allows you to solve most of the tasks of connecting PoE equipment.
