1. High quality imaging with 4 MP resolution
2. Support Human and Vehicle Detection
3. Smart Hybrid Light: advanced technology with long range
4. Efficient H.265+ compression technology
5. Support on-board storage up to 512 GB (SD card slot) (Optional)
6. Built-in microphone for real-time audio security
7. Water and dust resistant (IP67)

Specification

Camera

1. Image Sensor1/3" Progressive Scan CMOS
2. Max. Resolution2560 × 1440
3. Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
4. Shutter Time1/3 s to 1/100,000 s
5. Day & NightIR cut filter
6. Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
7. Lens
8. Lens TypeFixed focal lens, 2.8 and 4 mm optional
9. Focal Length & FOV
10. 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
11. 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
12. Lens MountM12
13. Iris TypeFixed
14. ApertureF1.0
15.

16. DORI
17. DORI
18. 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
19. 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
20.

21. Illuminator
22. Supplement Light TypeIR,White Light
23. Supplement Light RangeUp to 30 m
24. Smart Supplement LightYes
25. IR Wavelength850 nm
26.

27. Video
28. Main Stream
29. 50 Hz:
30. 20 fps (2560 × 1440)
31. 25 fps (1920 × 1080, 1280 × 720)
32. 60 Hz:
33. 20 fps (2560 × 1440)
34. 24 fps (1920 × 1080, 1280 × 720)
35. Sub-Stream
36. 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
37. 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
38. Video Compression
39. Main stream: H.265+/H.265/H.264+/H.264,
40. Sub-stream: H.265/H.264/MJPEG
41. Video Bit Rate32 Kbps to 8 Mbps
42. H.264 TypeBaseline Profile,Main Profile,High Profile
43. H.265 TypeMain Profile
44. Bit Rate ControlCBR,VBR
45. Region Of Interest (ROI)1 fixed region for main stream
46. Scalable Video Coding (SVC)H.264 and H.265 encoding
47.

48. Audio
49. Audio TypeMono sound
50. Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
51. Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
52. Audio Sampling Rate8 kHz/16 kHz
53. Environment Noise FilteringYes
54.

55. Network
56. ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
57. Simultaneous Live ViewUp to 6 channels
58. APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
59. SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
60. User/Host
61. Up to 32 users
62. 3 user levels: administrator, operator, and user
63. ClientiVMS-4200,Hik-Connect
64. Web Browser
65. Plug-in required live view: IE 10, IE 11,
66. Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
67.

68. Image
69. Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
70. Day/Night SwitchDay,Night,Auto,Schedule
71. Wide Dynamic Range (WDR)120 dB
72. SNR≥ 52 dB
73. Image EnhancementBLC,HLC,3D DNR
74. Privacy Mask4 programmable polygon privacy masks
75.

76. Interface
77. Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
78. On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
79. Built-In MicrophoneYes
80. Reset Key-F: Yes
81.

82. Event
83. Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
84. LinkageUpload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center,send email,trigger capture
85.

86. General
87. Power
88. 12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
89. PoE: IEEE 802.3af, Class 3, max. 7.5 W
90. MaterialMetal & Plastic
91. DimensionØ110 mm × 93 mm (Ø4.33" × 3.66")
92. Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
93. WeightApprox. 420 g (0.9 lb.)
94. With Package WeightApprox. 656 g (1.4 lb.)
95. Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
96. Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
97. LanguageEnglish, Ukrainian
98. General FunctionHeartbeat, anti-banding, mirror, password protection,password reset by email
99.

100. Approval
101. EMC
102.
103. CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
104. RCM: AS/NZS CISPR 32: 2015,
105. IC: ICES-003: Issue 7
106. Safety
107. UL: UL 62368-1,
108. CB: IEC 62368-1: 2014+A11,
109. CE-LVD: EN 62368-1: 2014/A11: 2017,
110. BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
111. Environment
112. CE-RoHS: 2011/65/EU,
113. WEEE: 2012/19/EU,
114. Reach: Regulation (EC) No 1907/2006
115. ProtectionIP67: IEC 60529-2013

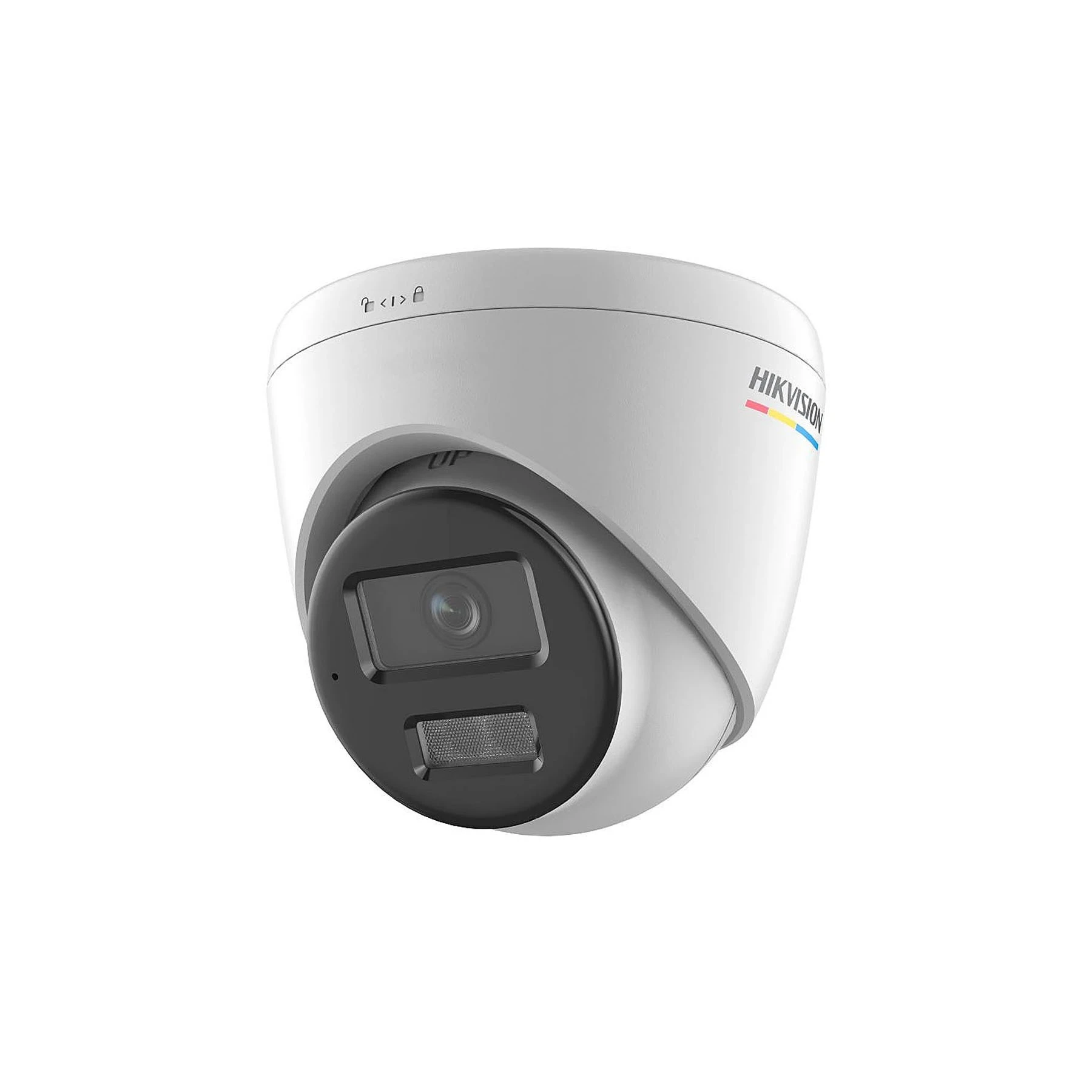

Hikvision 4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera DS-2CD1347G2H-LIU
