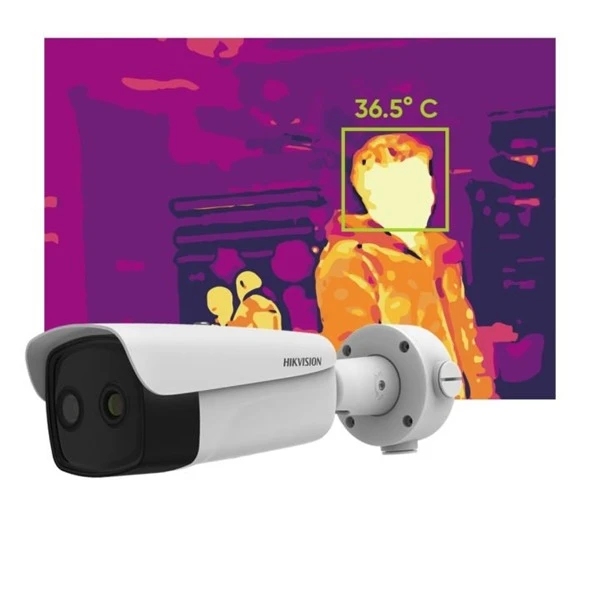

Temperature Screening Thermographic Bullet Camera

1. 160 × 120 Resolution in Thermal Channel, High Sensitivity Sensor
2. Accuracy at 4.92 ft to 9.84 ft (1.5 m to 3 m): ±0.5° F (±0.3° C) with Blackbody ±0.9° F (±0.5° C) without Blackbody
3. Reliable Temperature Exception Alarm Function
4. 3D DNR, Image Detail Enhancement
5. Strobe Light and Voice Alarm* (Price is Including installation)

Thermal Module

1. Image SensorVOx Uncooled Focal Plane Arrays
2. Resolution160 × 120
3. Pixel Interval17 μm
4. Response Waveband8 μm to 14 μm
5. NETDLess than 40 mK (@ 25 °C,F#=1.1)
6. Focal Length6.2 mm
7. 74 mrad
8. 1
9. Field Of View25° × 18.7° (H × V)
10. Focusing Distance0.6 m

Optical Module

1. Image Sensor1/2.7" Progressive Scan CMOS
2. Resolution2688 × 1520, 4 MP
3. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
4. Field Of View39.42° × 22.14° (H × V)
5. Focal Length8 mm
6. Shutter Speed1s to 1/100,000s
7. White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
8. Day & Night ModeIR cut filter with auto switch
9. WDR120 dB

Image Effect

1. Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
2. Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

Illuminator

1. IR DistanceUp to 40 m
2. IR Intensity And AngleAutomatically adjusted

Smart Function

1. Temperature Range30 °C to 45 °C (86 °F to 113 °F)
2. Temperature Accuracy± 0.5 °C

Video And Audio

1. Main Stream
2. Thermal:
3. 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
4. 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
5. 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
6. Sub Stream
7. Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
8. 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
9. 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
10. Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
11. Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
12. ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
13. APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
14. SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
15. Simultaneous Live ViewUp to 20 channels

Interface

1. ClientiVMS-4200, Hik-Connect
2. Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
3. Alarm Input2-ch inputs (0-5 VDC)
4. Alarm Output2-ch relay outputs, alarm response actions configurable
5. Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
6. Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
7. Audio OutputLinear Level; Impedance: 600 Ω
8. Communication Interface
9. 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
10. 1, RS-485 interface
11. On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General

1. Web Client Language
2. 32 languages
3. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
4. User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
5. PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
6. Power Consumption
7. PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
8. 12 VDC ± 20%: 0.5 A, max. 6 W
9. Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
10. Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
11. 3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
12. 76 kg (3.88 lb)

Hikvision DS-2TD2617B-6/PA Thermographic Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology. The sensor’s 160 x 120 resolution is upscaled to 320 x 240 and features adaptive AGC (Automatic Gain Control), 3D DNR (Digital Noise Reduction), and Digital Detail Enhancement for outstanding image enhancement. The 4 MP optical sensor provides outstanding color video in very dim environments down to 0.0089 lux, and built-in IR illumination allows black and white optical surveillance in zero-light conditions up to 131 ft (40 m). This camera series is able to measure an object’s temperature at high accuracy in real-time. It is suitable for use in areas that require greater security measures such as airports. With advanced detectors and algorithms, Hikvision’s Temperature Screening Thermographic Cameras are designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports, and other public places, with accuracy up to ±0.3°C.

1. One second to detect a skin-surface temperature of a person
2. Non-contact measurement to avoid physical contact
3. Immediately alarming to notify operators
4. AI detection to reduce false alarms from other heat sources
