1. Deep learning based human and vehicle targets classification of Motion Detection 2.0
2. H.265 Pro+/H.265 Pro/H.265 video compression
3. HDTVI/AHD/CVI/CVBS/IP video input
4. Audio via coaxial cable
5. Up to 18-ch IP camera inputs (up to 5 MP)
6. Up to 1080p Lite@15 fps encoding capability
7. Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0

Human/Vehicle Analysis

1. Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
2. Quick search by object or event type is supported;

Recording

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

1. For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps
2. For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps
3. For standard definition stream access: WD1/4CIF/VGA/CIF@25fps
4. Sub-stream: CIF/QVGA@15fps

Video Bitrate 32 Kbps to 4 Mbps

Dual-Stream Nonsupport

Stream Type Video, Video & Audio

Audio Compression G.711u

Audio Bitrate 64 Kbps

Video And Audio

IP Video Input

1. 2-ch (up to 18-ch)
2. Up to 5 MP resolution
3. Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

1. 32-ch
2. BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input 1080p25, 1080p30, 720p25, 720p30

AHD Input 1080p25, 1080p30, 720p25, 720p30

HDCVI Input 1080p25, 1080p30, 720p25, 720p30

CVBS Input PAL/NTSC

HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)

Audio Input

1. 1-ch, RCA (2.0 Vp-p, 1 KΩ)
2. 32-ch via coaxial cable

Audio Output 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback 16-ch

Network

1. Remote Connection 128
2. Total Bandwidth 128 Mbps
3. Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
4. Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
5. Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

1. Serial Interface RS-485 (half-duplex)
2. SATA 2 SATA interface
3. Capacity Up to 10 TB capacity for each disk

USB Interface

1. Front panel: 1 × USB 2.0
2. Rear panel: 1 × USB 3.0

General

1. Power Supply 12 VDC, 3.33 A
2. Consumption ≤ 18 W (without HDD)
3. Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
4. Working Humidity 10% to 90%
5. Dimension (W × D × H) 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
6. Weight ≤ 2.2 kg (without HDD, 4.9 lb.)

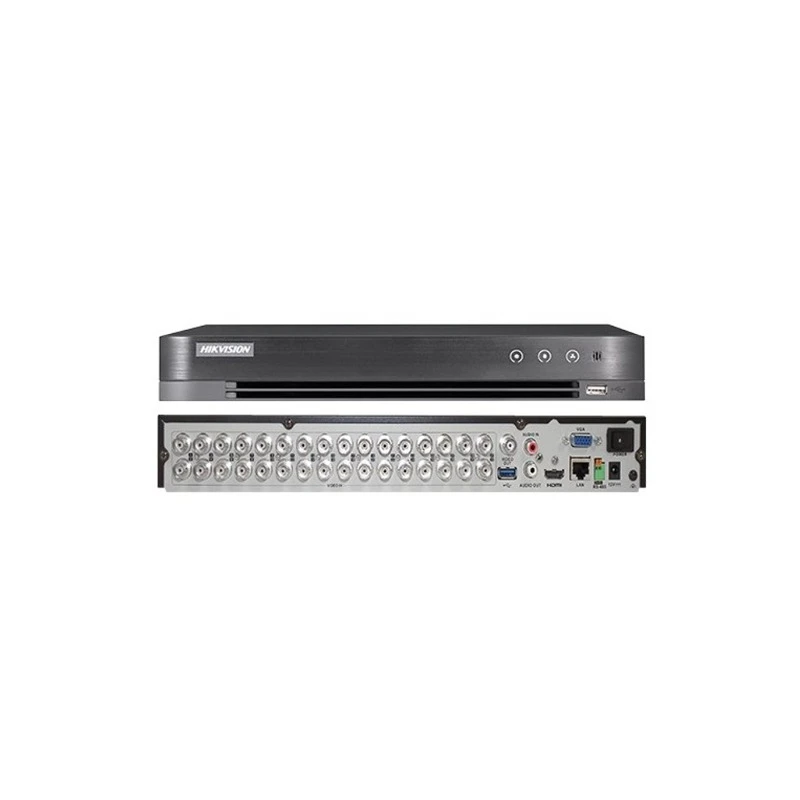

Hikvision 32-ch 720p 1U H.265 DVR DS-7232HGHI-M2

Smart Function

1. Deep learning-based motion detection 2.0

Compression and Recording

1. H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
2. Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Storage and Playback

1. 2 SATA interfaces (up to 10 TB capacity)
2. Smart search for efficient playback

Network & Ethernet Access

1. Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
